One. Two. Print.
Surfer is:
- Powerful servo motors;
- Fast printing;
- Quality control;
- Cost minimization;
- Functional software;
- Increased productivity due to a dual extruder (printing two panels simultaneously);
- Affordable price and quick assembly.

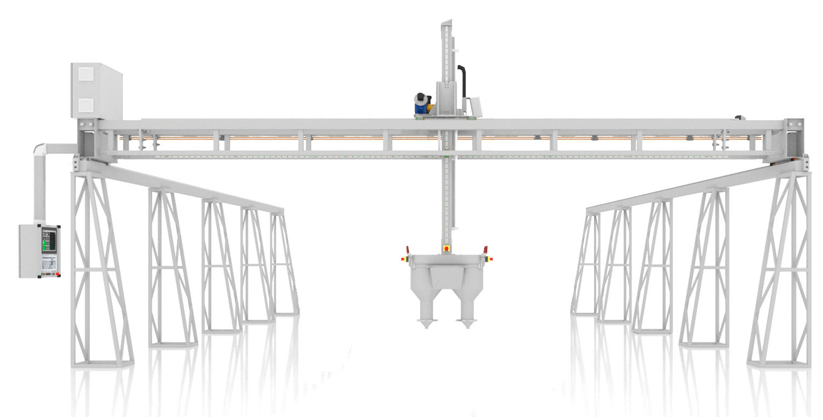

The Surfer printer is designed for batch production of unitized concrete products.
Printing in the workshop:
- House wall blocks;
- Fence panels;
- Pillar elements of parking lots, sheds;
- Wall parts for garages, utility rooms;
- Outdoor showers and toilets.
Specifications
| Parameter | Value |
|---|---|
| Travel Distance of Axis 1 (X) | 10.9 m |
| Travel Distance of Axis 2 (Y) | 5.1 m |
| Travel Distance of Axis 3 (Z) | 1.25 m |
| Printer Dimensions | 11.7 x 7-8 x 4.5 m |
| Movement Speed | 0.5 m/s |
| Feeding Type | Screw |
| Power Supply | 1 x 220V, 50Hz |
| Working Power | 5.5 kW |
| Movement System | Servo |
| Material Consumption | 9 m³/day |
| Maximum Filler Size | < 10 mm |
| Staffing | 3 workers, 1 operator |
| Connection | Bluetooth or LAN |
| Interface | Pumotix |
| Software | CAM SheetCam |
| Sensors | 3 home + 6 limit |
| Mix Loading Instructions | Recommended mix of gravel (up to 8 mm) + sand + cement + water + plasticizer |
Printer Accessories
Surfer printer produces 150 wall blocks per shift with a total volume of 12 m3.
Business margin from the sale of concrete products printed by Surfer printer is 27%, payback period Surfer – 1 year

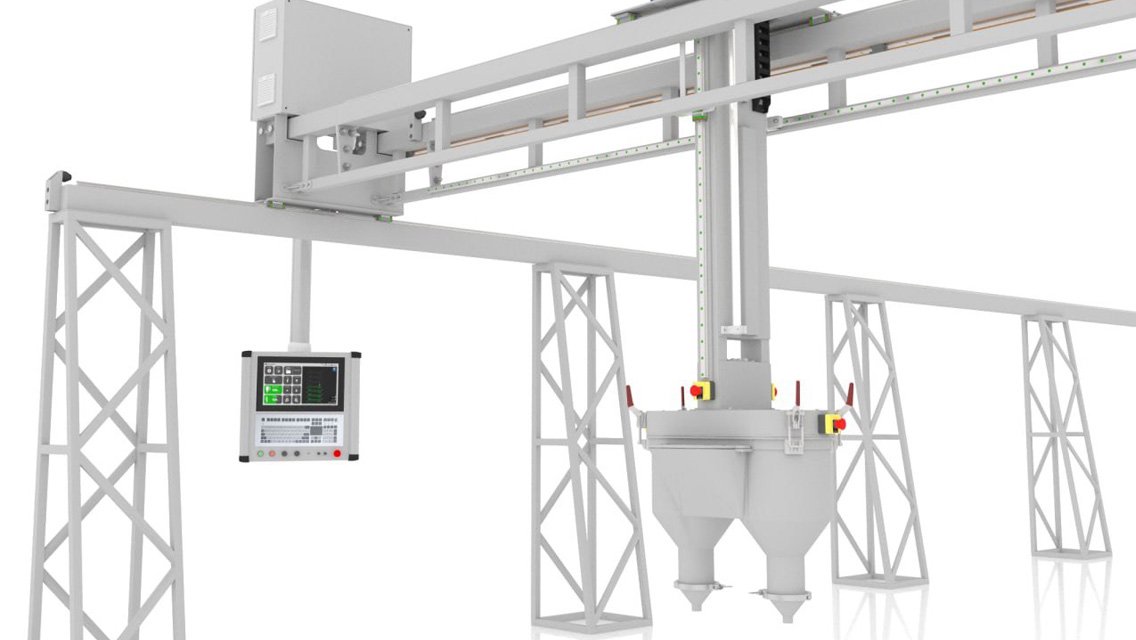

Double extruder, reliable components of the printer’s units ensure smooth, efficient operation and high economic performance of production.
